2.13 Worked Numerical Problems

Problem 1: Excavator productivity

Bucket capacity = 0.8 m³; fill factor = 0.85; cycle time = 30 s; operating efficiency = 75%. Cycles/hour = 3600/30 = 120. Productivity = 0.8 × 0.85 × 120 × 0.75 = 61.2 loose m³/hour. Actual output varies with material and site conditions.

Problem 2: Dumper trips

Loose soil = 120 m³; effective carrying volume = 6 m³/trip. Number of trips = 120/6 = 20. Confirm permissible payload by mass as well as volume.

Problem 3: Conveyor quantity

Average transfer rate = 25 tonnes/hour; operating time = 6 hours. Quantity = 25 × 6 = 150 tonnes.

Problem 4: Equipment utilisation

Available shift = 8 hours; productive time = 6 hours. Utilisation = (6/8) × 100 = 75%.

2.14 Comparative Summary

2.15 Tutorials and Classroom Exercises

Exercise 1: Prepare two A3 sheets identifying five machines with labelled components, working principles, applications and limitations.

Exercise 2: Select equipment for site clearing, basement excavation, soil transport, lifting reinforcement and interior partition installation; justify each selection.

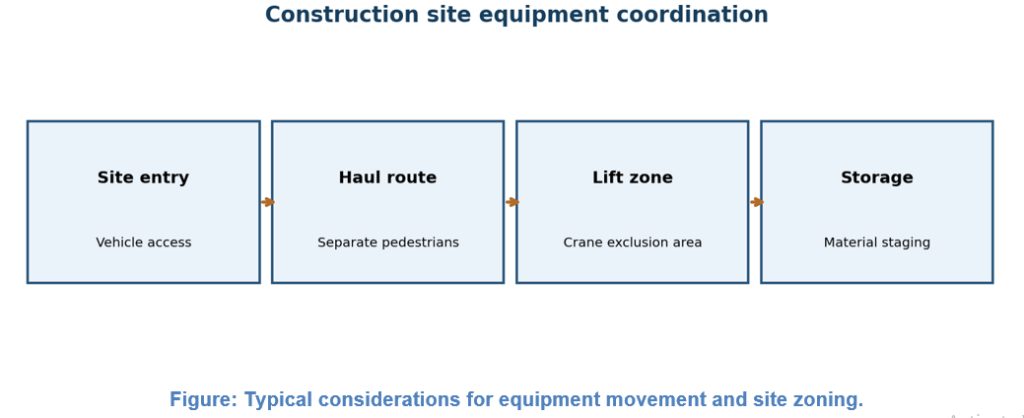

Exercise 3: Draw a conceptual construction site plan showing vehicle circulation, material storage, crane position, unloading, excavation boundaries and exclusion zones.

2.16 Examination-Oriented Questions

Short-answer questions

•  . Define modern construction equipment and classify it by function.

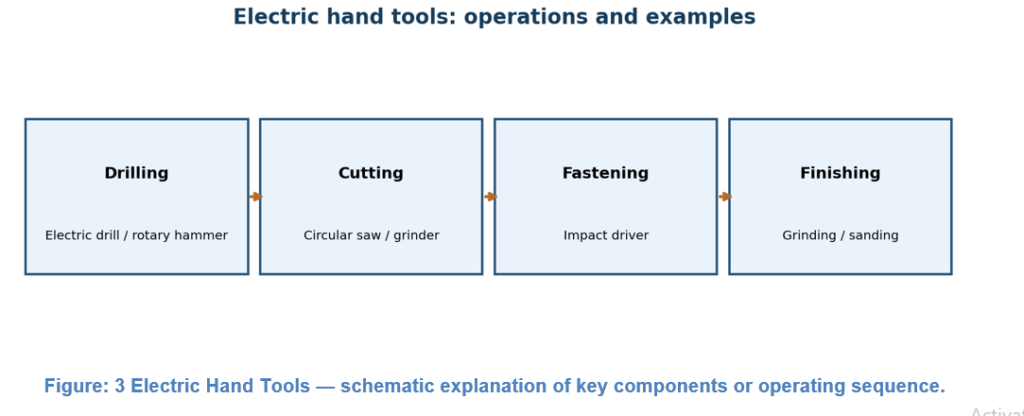

•  . Identify four electric hand tools and their uses.

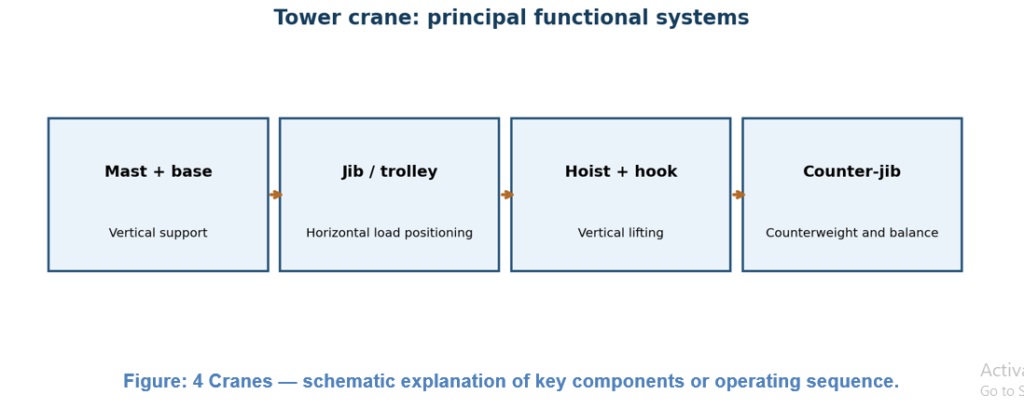

•  . Name the principal components of a tower crane.

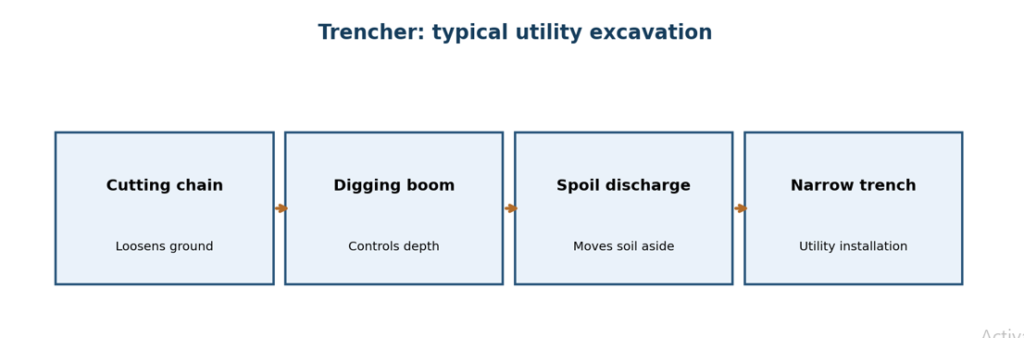

•  . Distinguish an excavator from a trencher.
•  . State two uses of a bulldozer and scraper.
•  . Explain the purpose of a forklift counterweight.

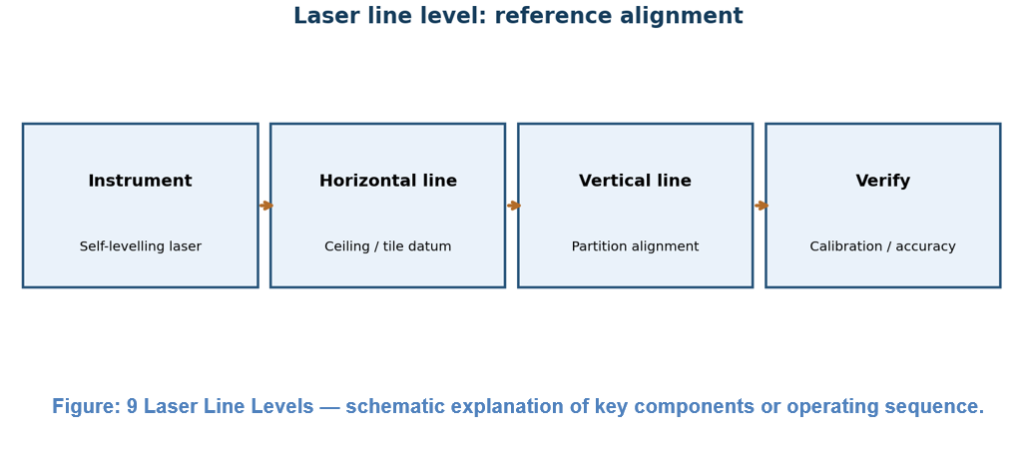

•  . What is a laser line level?

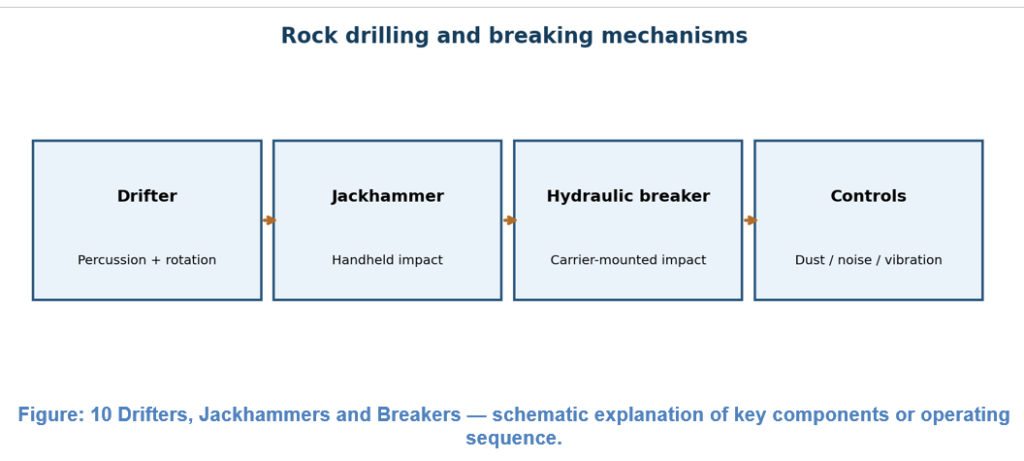

•  . Differentiate a drifter, jackhammer and hydraulic breaker.
•  . Name three conveyor types.

Descriptive questions

• . Explain the types, components and applications of cranes with labelled sketches.

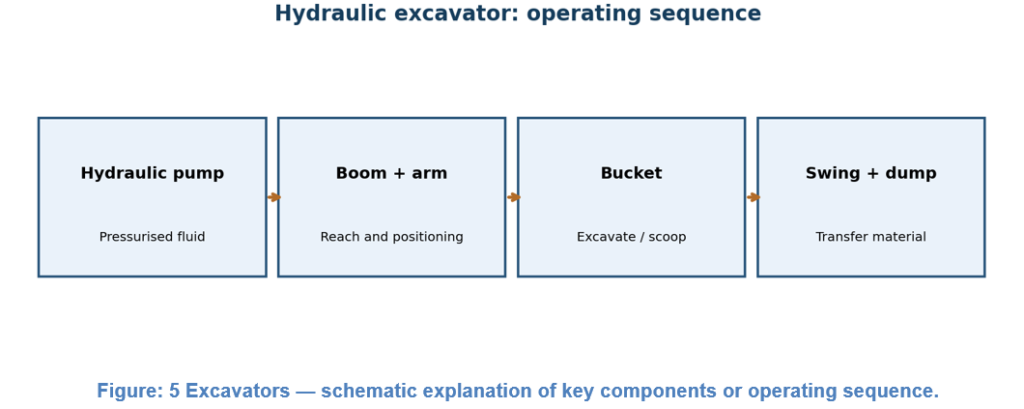

• . Describe hydraulic excavator operation and excavation-site precautions.

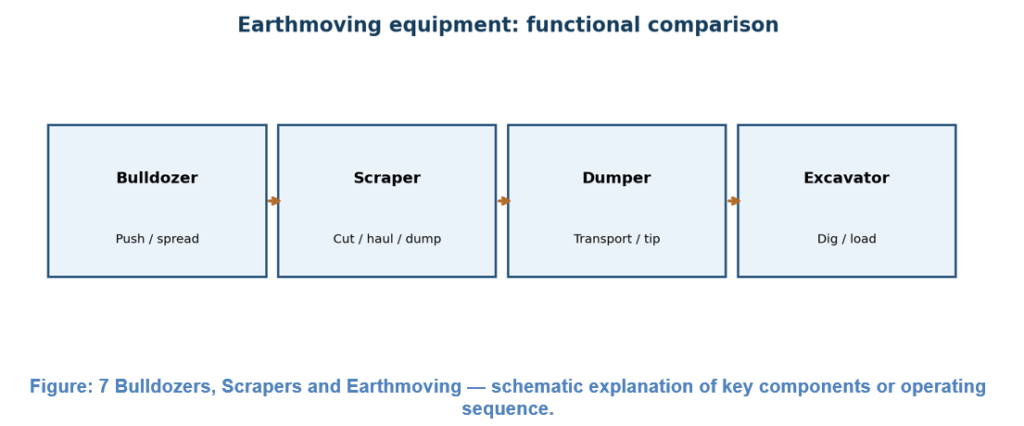

• . Compare bulldozers, scrapers and dumpers for earthmoving.

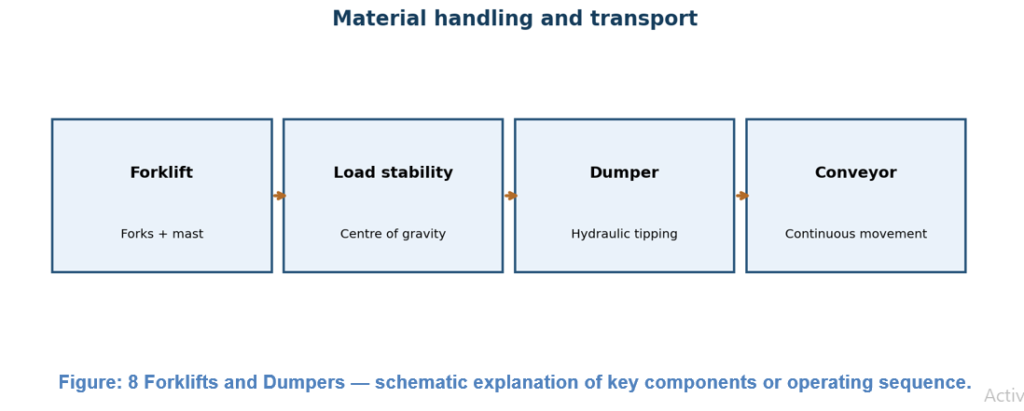

• . Explain forklift and dumper operation, including stability and safety.
• . Discuss drilling and demolition equipment with diagrams.

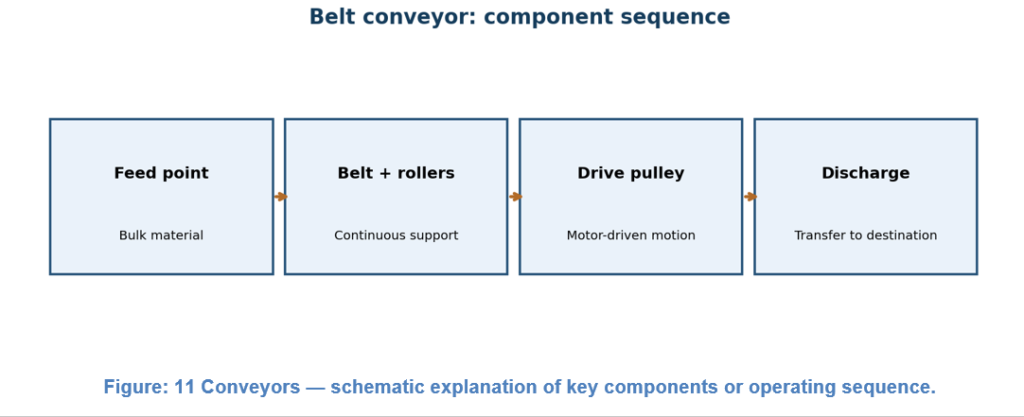

• . Explain conveyor types and working principles.
• . Describe factors governing equipment selection and site planning.

2.17 Teaching Schedule — 14 Contact Hours

2.18 Learning Outcomes

• . Identify and classify common construction machinery.
• . Explain the working principles and components of equipment.
• . Compare equipment applications, advantages and constraints.
• . elect appropriate machinery for given construction tasks.
• . nterpret basic productivity calculations and site logistics.
• . Recognise essential operational and site safety requirements.

2.19 Recommended References

• . Peurifoy et al., Construction Planning, Equipment, and Methods, McGraw-Hill.
• . Chudley and Greeno, Building Construction Handbook, Routledge.
• . Sharma, Construction Equipment and Its Management, Khanna Publishers.
• . arris, McCaffer and Edum-Fotwe, Modern Construction Management, Wiley-Blackwell.
• . Relevant manufacturer manuals, load charts, and applicable Indian safety requirements; verify current editions.

Chapter Summary

Modern construction equipment supports excavation, lifting, transport, material handling, surveying, drilling, demolition and finishing. Architects must understand machine functions as well as the implications of equipment capacity, access, sequencing and safety for design and site organisation. The appropriate equipment is that which performs the intended work safely, efficiently and economically under actual site conditions.
